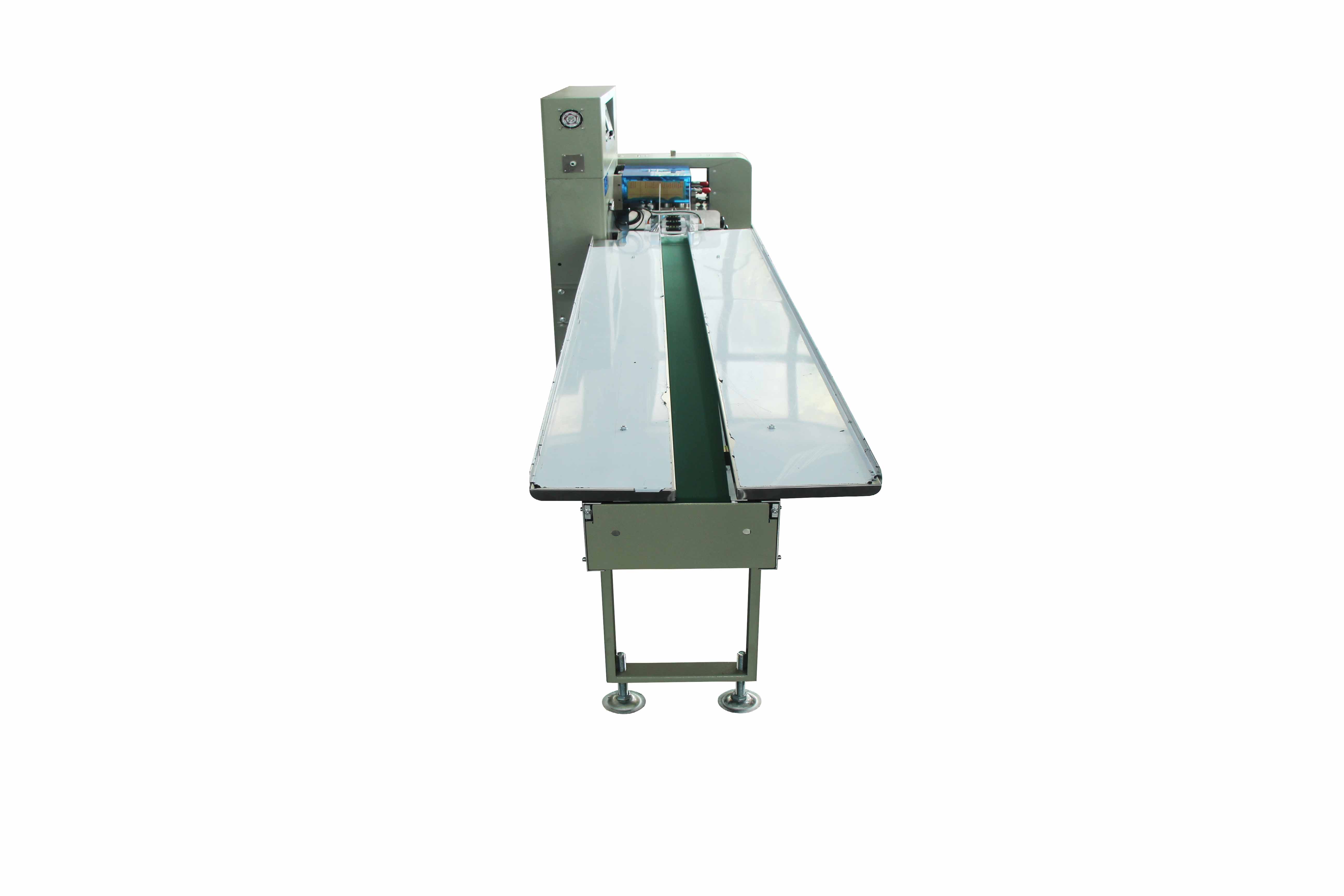

GL-W350 Bottom Feeding Pillow Packaging Machine Automatic for Three-servo Card Sleeve
1 , Product overview:
The bottom-feeding automatic packaging machine is a common automatic packaging equipment, suitable for packaging products such as card sleeves and strips.
The machine uses a downfeed packaging method, where the paper is pulled down from above and wrapped around the product. This packaging method can effectively protect the product and provide a good appearance.
The machine is equipped with three servo systems for accurate positioning of ferrules and strip products. These servo systems can precisely control the position of the paper and the packaging process of the product, ensuring packaging accuracy and stability.
Bottom-feeding automatic packaging machines are usually equipped with an automatic feeding system, which can automatically feed the card sleeves and strip products to be packaged into the packaging area. In addition, the machine also has an automatic stacking function to stack packaged products together to facilitate subsequent packaging and transportation.
2 , Product specifications
| Equipment model | GL-W350 |
| Counting method | manual placement/photo-eye positioning |
| Bag size | width 50-350, adjustable length |
| Packing speed | 1-100 bags/min |
| Sealing shape | stripe, back seal |
| Voltage power | 220V/50HZ P≈2.5KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 3920*750*1350mm(L*W*H) |
| Weight | about 600KG |
GL-W350 Bottom Feeding Pillow Packaging Machine Automatic for Three-servo Card Sleeve
3 , Technical characteristics
1 . Servo control, adjustable bag length, saving time and film.
2 . Fault self-diagnosis and alarm display.
3 . Man-machine interface operation, parameter setting is simple, convenient and quick.
4 . Temperature independent control, can be adjusted according to needs, better suitable for all kinds of material packaging.
5 . The transmission system is simple and clear, the work ability is reliable, and the maintenance is convenient.
6 . High sensitivity photoelectric color code tracking, sealing and cutting more accurate.
7 . Goods sensing to prevent empty bags.
4 , Operating procedures
GL-W350 three-servo card sleeve, row plug packaging machine, down-feed automatic packaging machine.
1 . The material is placed on the tray, which is manually put into the belt for transmission.
2 . Using optical fiber counting induction, the material is transferred from the belt to the inside of the packaging film, and the bag is automatically pulled.
3 . The middle sealing area is working, automatically pulling the bag, sealing and cutting.
4 . Conveyor send to products after bagging.
5 . The final product was beautiful and uniform, and the number was accurate.
GL-W350 Bottom Feeding Pillow Packaging Machine Automatic for Three-servo Card Sleeve
5 , FAQ
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
Q : Are you a real factory/manufacturer?
A : Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.
For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
