Horizontal Automatic Pillow Packaging Machine for Instructions with Card Issuing Machine
1 , Product overview
The automatic card issuance, sealing and packaging machine is a device suitable for various regular products such as manuals and warranty cards. It includes three card-issuing machines that perform card-issuing operations in an orderly and synchronized manner.
This automatic card issuance, sealing and packaging machine can efficiently handle the card issuance and packaging process of regular products. Through automated operations, it improves production efficiency, reduces manual operations, and ensures product consistency and quality.
The automatic card issuance, sealing and packaging machine not only includes a card issuance machine, but also is equipped with a corresponding packaging machine. The packaging machine receives the products sent from the card issuing machine and performs automatic filling and sealing operations according to the set process and sealing method. This ensures product safety and consistency during packaging.
2 , Product specifications
| Equipment model | GL-W350X+FK200 |
| Counting method | manual placement/photo-eye positioning |
| Bag size | width 50-350, adjustable length |
| Packing speed | 1-100 bags/min |
| Sealing shape | stripe, back seal |
| Voltage power | 220V/50HZ P≈2.5KW |
| Air supply | 0.4-0.8MPA |
| Bag mouth shape | figure cutter tooth shape |
| Dimensions | 4500*1200*1300mm(L*W*H) |
| Weight | about 700KG |
Horizontal Automatic Pillow Packaging Machine for Instructions with Card Issuing Machine
3 , Technical characteristics
1 . Servo control, adjustable bag length, saving time and film.
2 . Fault self-diagnosis and alarm display.
3 . Man-machine interface operation, parameter setting is simple, convenient and quick.
4 . Temperature independent control, can be adjusted according to needs, better suitable for all kinds of material packaging.
5 . The transmission system is simple and clear, the work ability is reliable, and the maintenance is convenient.
6 . High sensitivity photoelectric color code tracking, sealing and cutting more accurate.
7 . Goods sensing to prevent empty bags.
4 , Operating procedures
GL-W350X+FK200 Automatic paging and sealing packaging machine suitable for manuals and warranty cards various regular products
The 3 paging machines, paging according to the setting method.
The paging machine 1 can put the manual.The paging machine 2 can put the certificate on the manual.
The paging machine 3 put the warranty card on them again.
When the green indicator light is on, each automatic paging machine will automatically send out the corresponding manual or warranty card according to the set quantity and send it to the conveyor belt of the packaging machine,which is driven by the chain.
The product is delivered to the sealing area to automatically fill the package

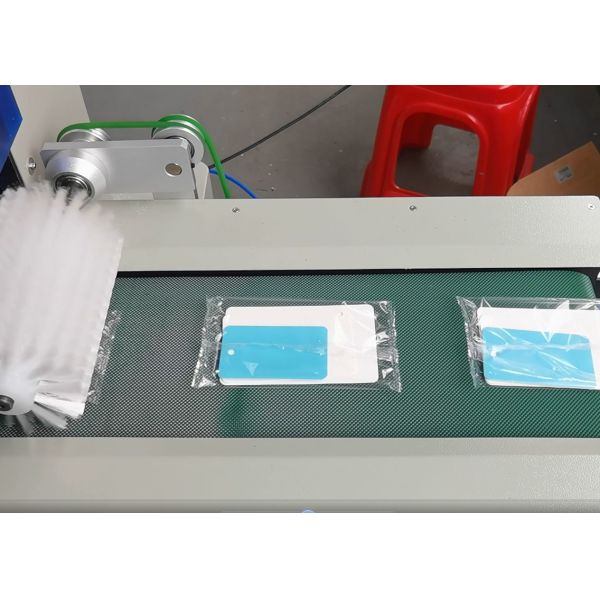

After the packaging is completed, the product is flattened by a brush and sent to the discharge conveyor belt, and transferred to the next station or transfer box.
Horizontal Automatic Pillow Packaging Machine for Instructions with Card Issuing Machine
5 , FAQ
Q : How do I find the right packaging machine for my product?
A : Tell us your product details and packaging requirements.
1 . What kind of product?
2 . Production size or bag/pouch/pouch dimensions (length, width) required for product packaging.
3. The weight of each package you need.
4. Your requirements for machine and bag type.
Q : Are you a real factory/manufacturer?
A : Of course. Our factory is third party inspected. We welcome you and pick you up from your hotel for free.
For some reasons you are unable to visit our factory, we can use live video so that you can visit us online.
